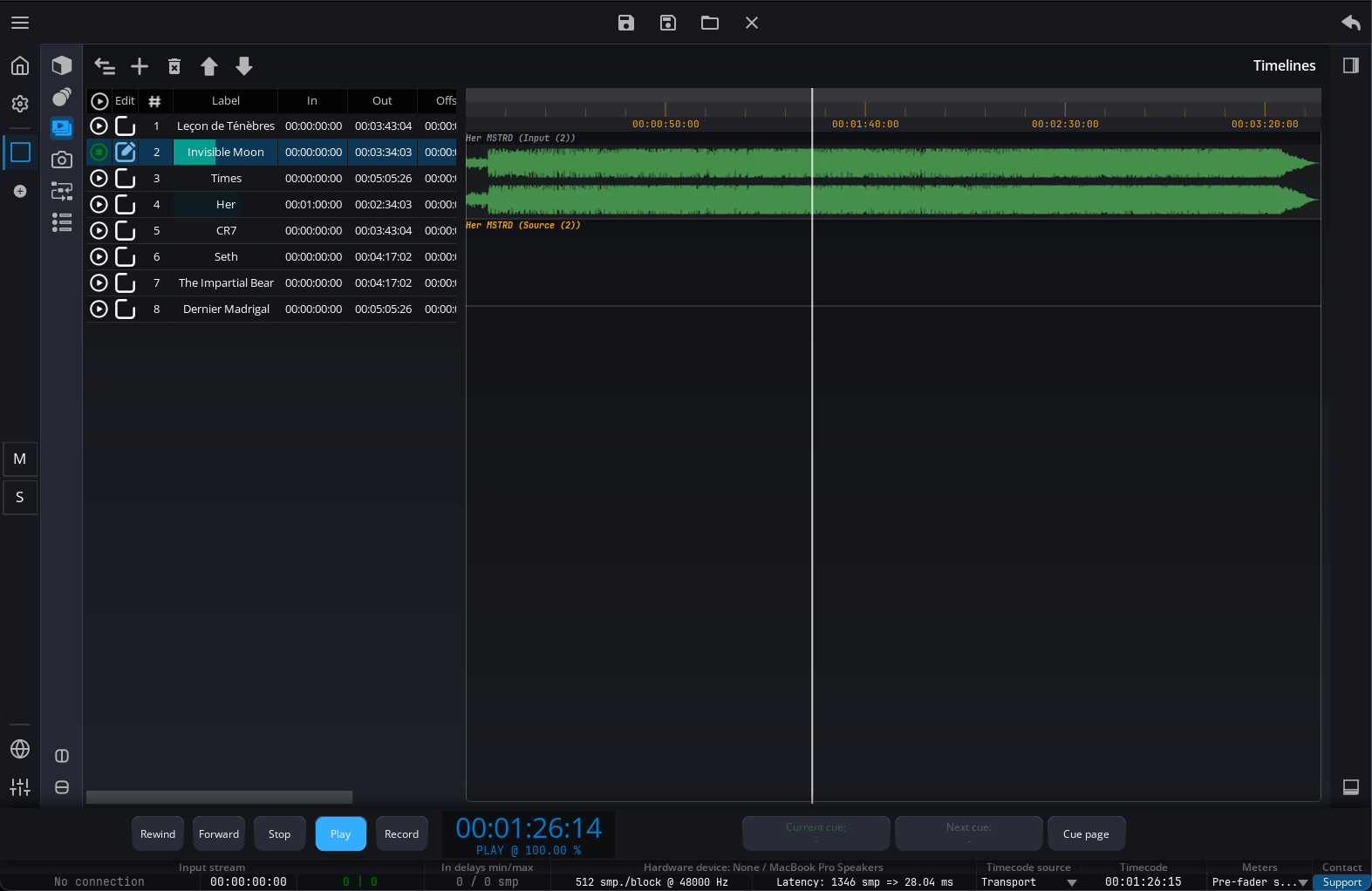

Advanced Integrated Multimedia Recording & Playback

MultiMedia Recording & Playback in SPAT Revolution ensures creative intent is preserved by recording and replaying immersive sessions directly from a timeline, while seamlessly combining pre‑produced multi‑track content with live object mixing for fixed installations and live deployments.

• Multi‑timeline playback
  Run multiple timelines simultaneously for flexible playback of immersive content.
• Record & playback with automation
  Capture full SPAT Revolution sessions, including automation, and replay them directly from the internal timeline.
• Cue triggering
  Trigger objects, snapshots, timelines and animations internally or via external systems for interactive and integrated workflows.

Enhanced Integration of Immersive Formats with ADM import

ADM (Audio Definition Model) support in SPAT Revolution lets you take a Dolby Atmos® ADM‑WAV straight from your DAW and render it into any space. No stems, no rebuilding automation, saving time while preserving creative intent for exhibitions, museums and immersive events.

• ADM / Atmos workflow support
  Enhanced integration of immersive formats including ADM, Dolby Atmos, and more.
• ADM import & live re‑rendering
  Load ADM productions from third‑party tools and re‑render them live within SPAT Revolution.
• Creative intent preserved
  Object automation remains intact, no need to rebuild mixes or export stems.
• Ideal for fixed and immersive installations
  Designed for exhibitions, galleries, museums and live environments requiring a reliable Atmos render path.

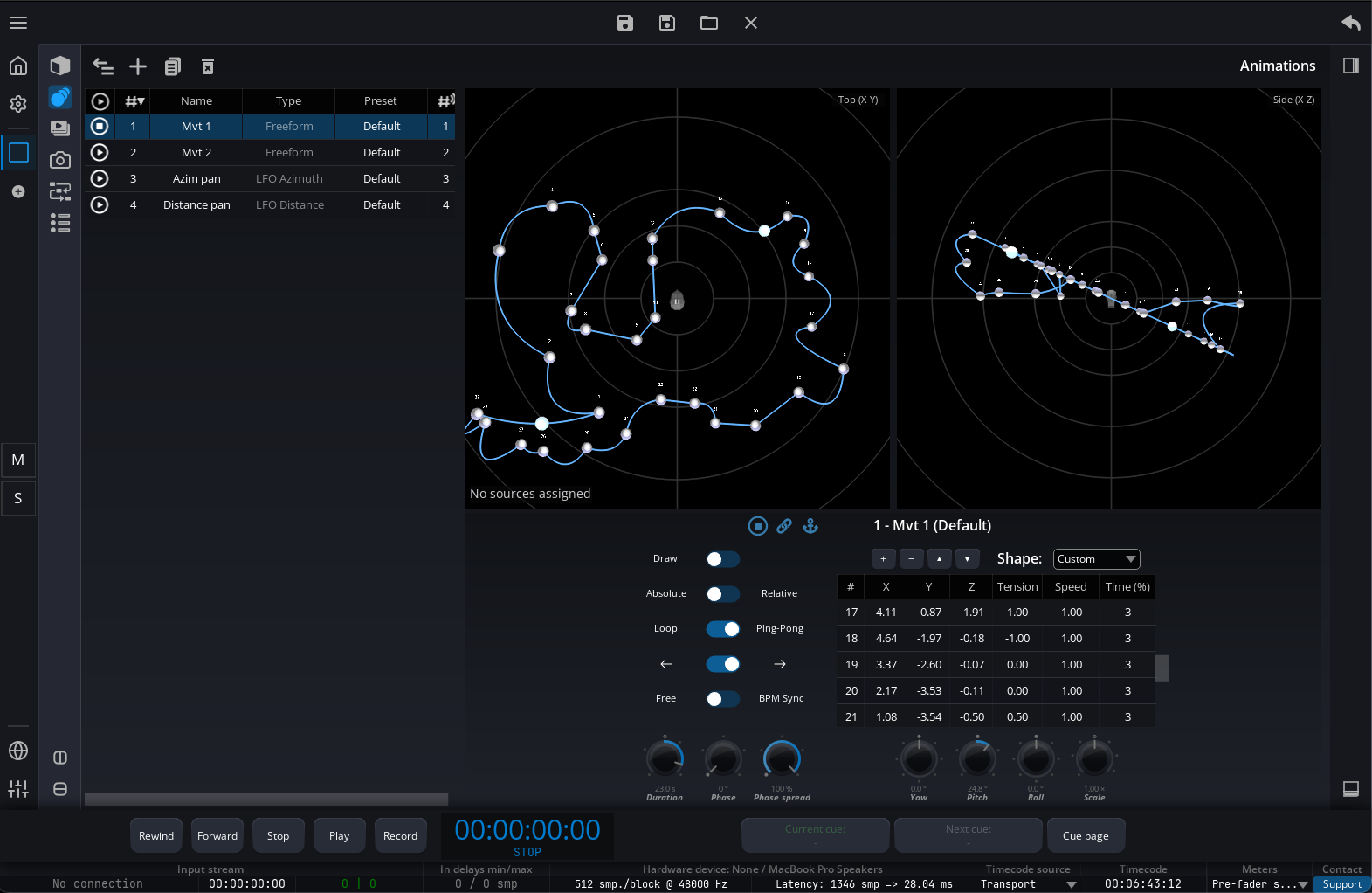

Object Movement Animation

The Object Movement Animation feature in SPAT Revolution enables controlled, repeatable object motion directly inside the program, supporting show control, creative effects and reduces workflow fragmentation.

• Flexible movement types
  Define linear or circular motion with playback modes such as single‑fire, looping or ping‑pong (bounce).
• Custom trajectory creation
  Design your own movement paths and apply them to sources in absolute or relative modes.
• Built for show control and effects
  Essential for productions driven directly from SPAT Revolution, enabling dynamic spatial effects without external tools.
• Reduced workflow fragmentation
  Object animation handled natively inside SPAT, minimizing reliance on third‑party automation systems.

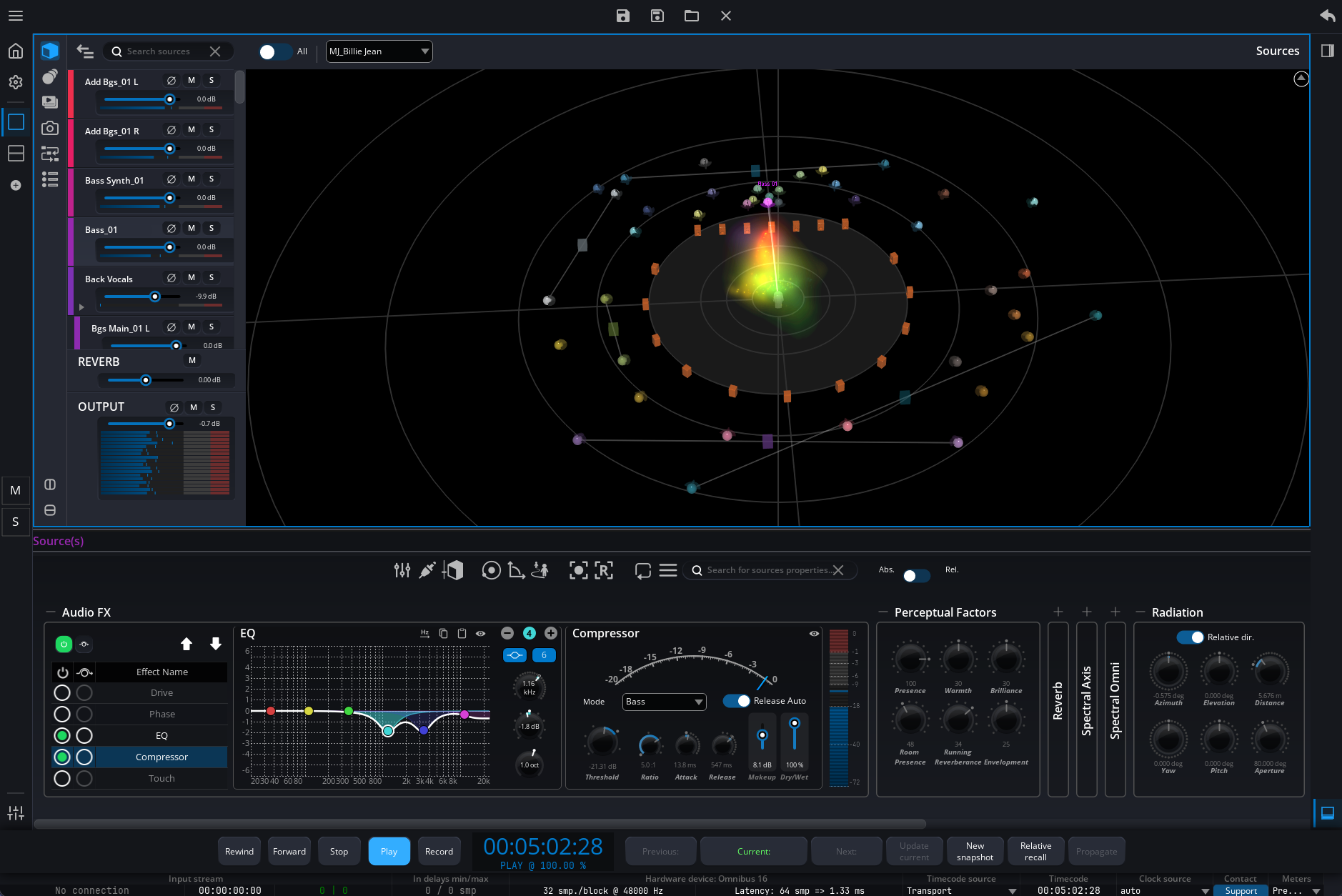

Integrated Audio Channel Processing

FLUX:: processing is now available directly inside the SPAT Revolution audio chain, marking the first integration phase of 25 years of FLUX expertise into a unified immersive workflow.

Key points

• Integrated FLUX:: processing
  High‑quality FLUX:: tools embedded directly in the SPAT audio chain.
• Source processing
  EQ, Compressor, Touch, and Drive available per source.
• Room processing
  Dedicated EQ for room handling and tuning.
• Output channel processing
  Output EQ with direct import capability from MiRA for system‑aligned optimization.

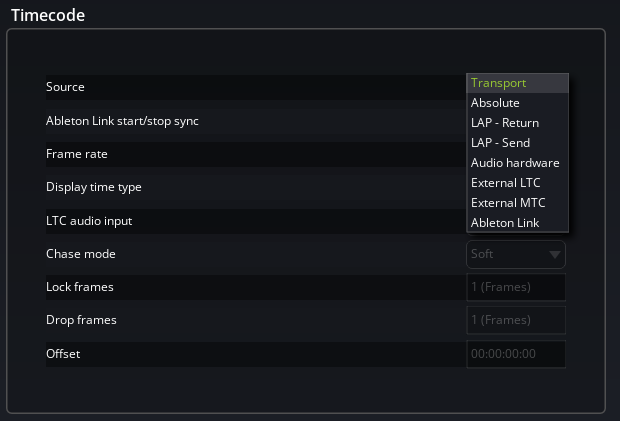

External Synchronization

This upgrade adds professional time‑synchronization support to SPAT Revolution, ensuring precise alignment with lighting, video, and third‑party systems in complex productions.

• LTC (Linear Time Code)
  Reliable timecode synchronization for professional AV and show‑control environments.
• MTC (MIDI Time Code)
  Seamless timing integration with MIDI‑based devices and workflows.
• Ableton Link (Bars & Beats)
  Musical time synchronization for tempo‑based and performance‑driven productions.
• Built for synchronized productions
  Essential for projects requiring tight alignment between immersive audio, lighting, video, and external control systems.

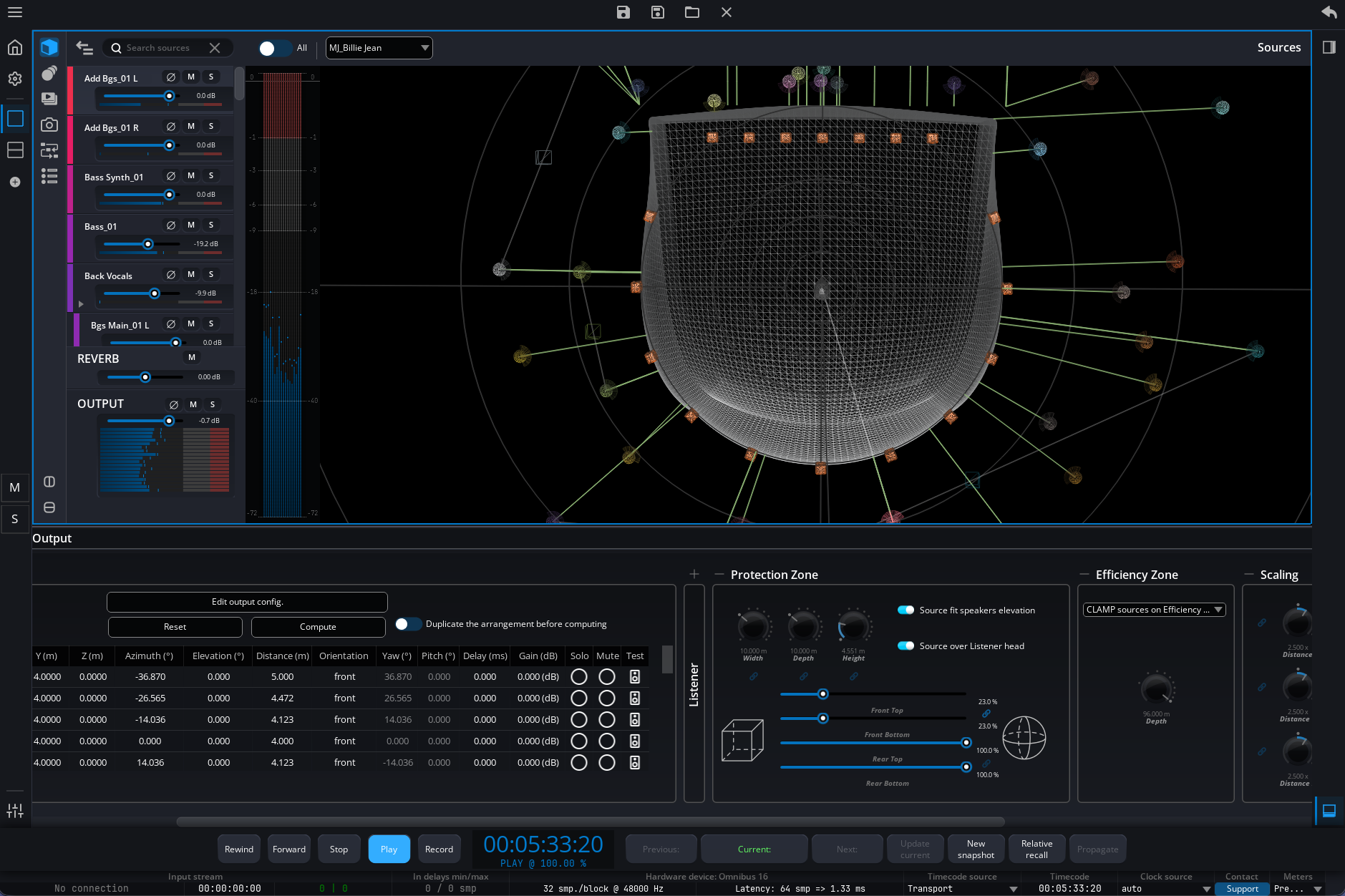

Morphed Protection Zone

The new Morphed Protection Zone delivers more predictable and consistent level behavior by adapting the protection zone shape to real‑world venue layouts rather than enforcing a fixed circular model.

• Adaptive protection zone shape
  Protection limits can now be set independently in width, depth and height.
• Round‑to‑box morphing
  The zone smoothly adapts between circular and box‑like shapes depending on the system layout.
• Designed for complex venues
  Especially beneficial for complex large‑scale installations, front‑focused systems and/or non‑circular spaces such as performing arts centers.
• More predictable behavior
  Distance is now calculated to the protection zone itself instead of the system center, resulting in more stable and controllable level behavior.

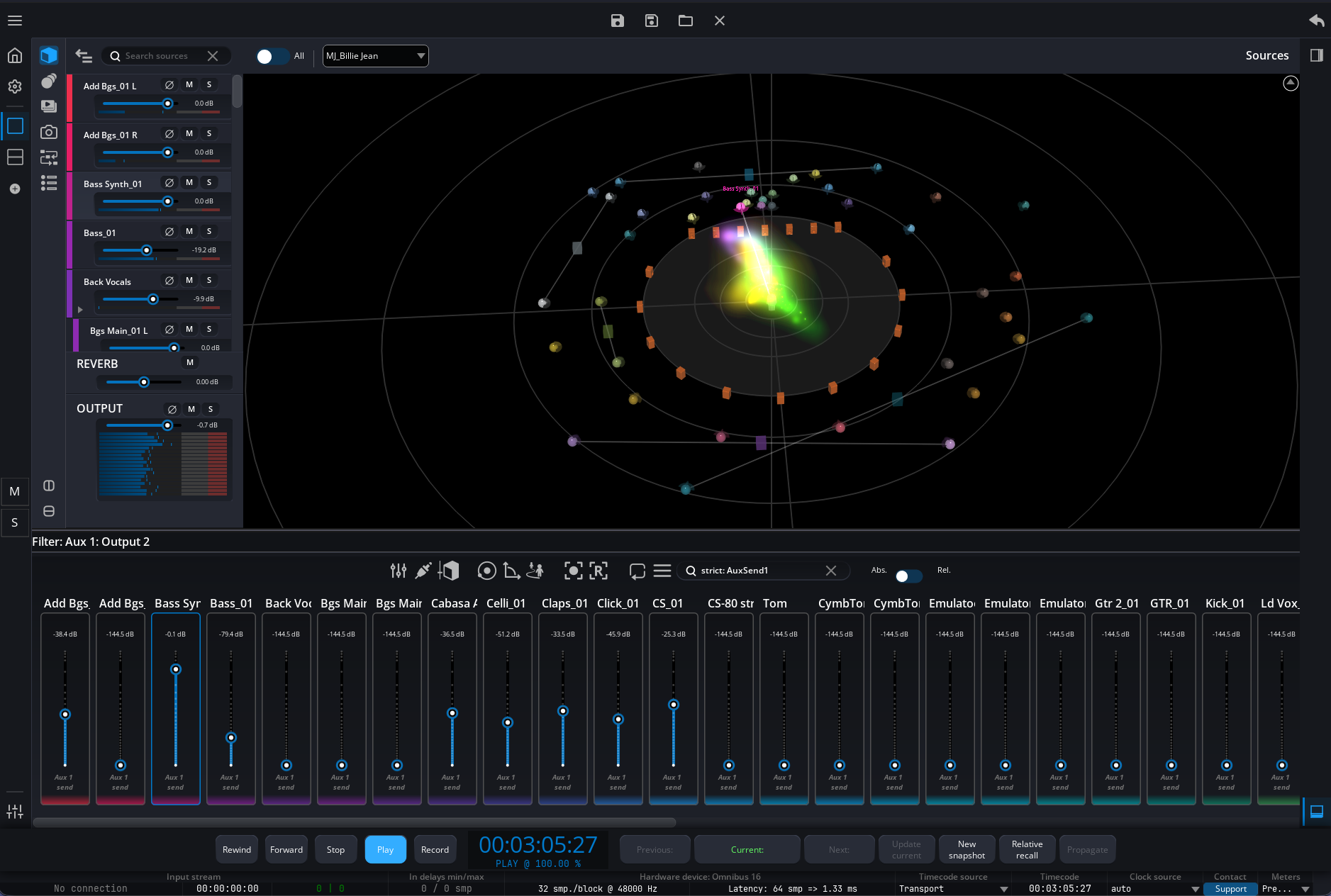

Auxiliary Sends

Auxiliary Sends in SPAT Revolution enable seamless integration of external hardware and software effects directly into the immersive signal chain, without breaking spatial workflows.

Key points

• Up to 16 auxiliary sends
  Flexible routing to integrate external effects processors within immersive productions.
• External processing integration
  Route signals directly from SPAT Revolution to outboard gear or third‑party software.
• Flexible I/O assignment
  Easily assign inputs and outputs as auxiliary sends to match complex system configurations.
• Optional latency compensation
  Ensures precise timing and phase coherence across the entire signal chain.

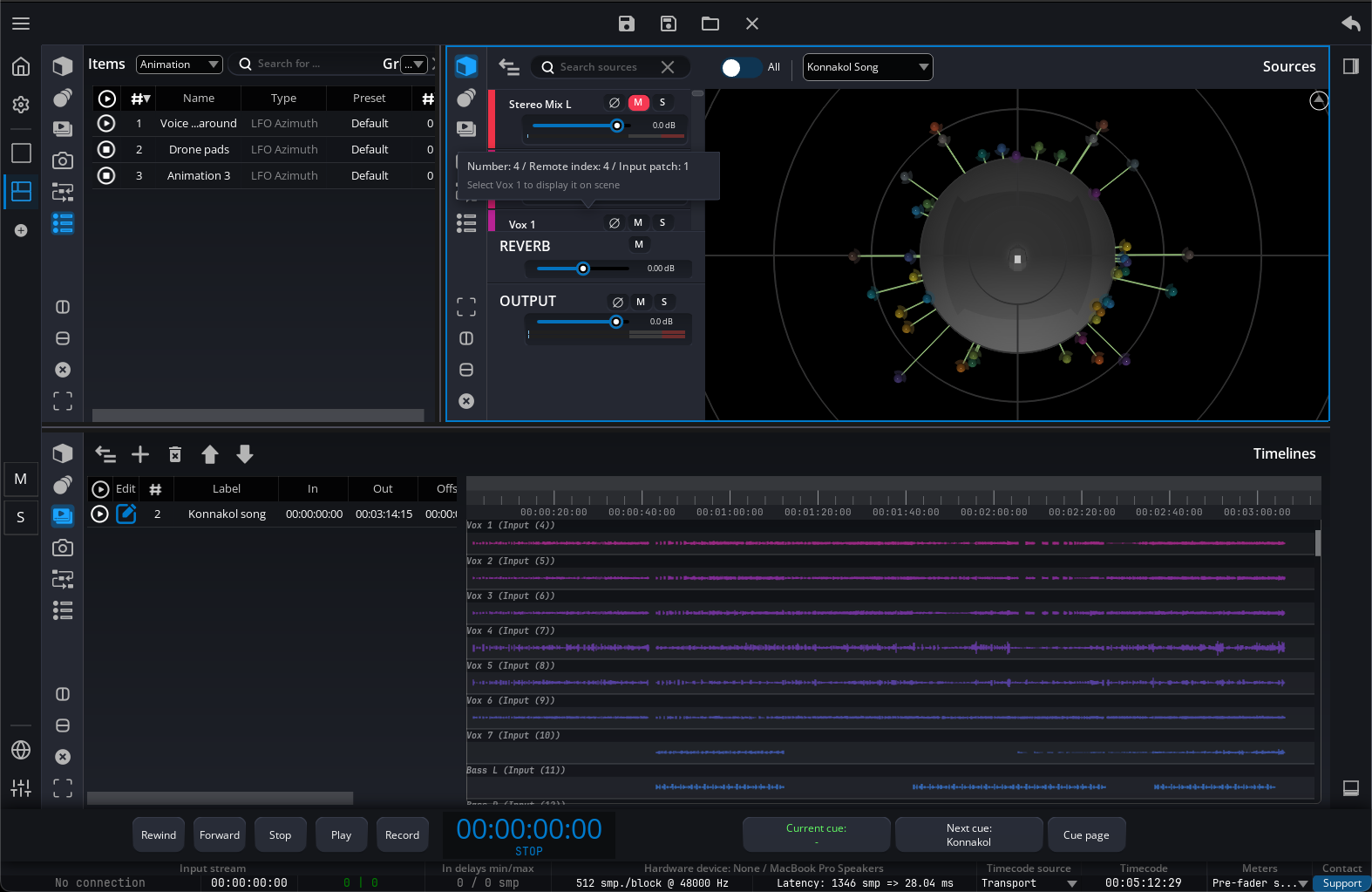

Revamped User Interface

A revamped SPAT Revolution UI introducing fully customizable layouts and improved navigation, giving users faster access to key views, deeper object control and a more flexible immersive workflow.

• Customizable layout‑based navigation
  Build your own workspace with simultaneous views such as 3D, animation, timeline, snapshot, cue, and items view.
• Efficient multi‑view operation
  Easily switch between layouts to match different stages of production or operation.
• Enhanced object control
  Expanded inspector access provides quicker and deeper control of object parameters.
• Expanded language support
  UI now available in multiple native languages: Chinese (new), Japanese (new), Korean, French, German, Spanish

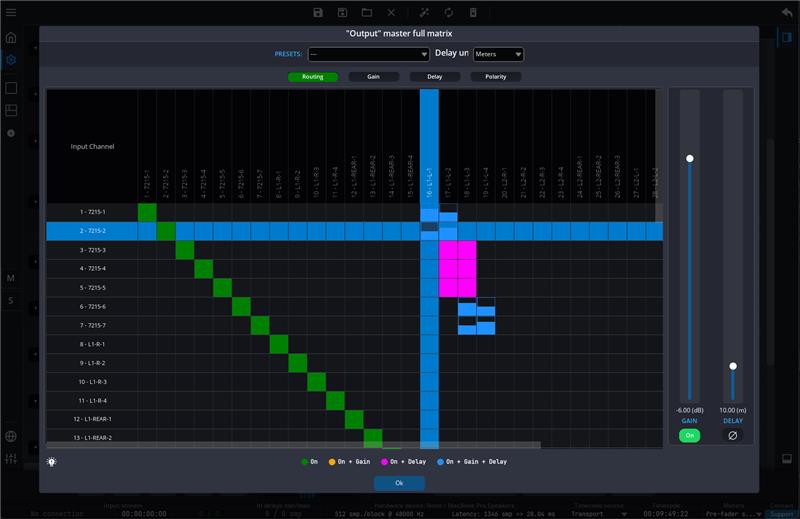

Sub Matrixing

Sub‑matrixing in SPAT Revolution enables precise control of complex loudspeaker zones by defining sub‑matrices with individual sum, delay, and gain setting. Ideal for large, multi‑area spaces, like theatres, houses of worship, performing arts centers, arenas and many more.

• Flexible sub‑matrix definition
  Create sub‑matrices with dedicated sum, delay, and gain control per node.
• Designed for complex venues
  Optimized for large environments with multiple areas such as balconies and delay lines.
• Improved spatial consistency
  Ensures accurate timing and level management across distributed loudspeaker zones.

Overhauled SPAT Revolution Plugin

The overhauled SPAT Revolution Plugin brings the full SPAT experience directly into your DAW, unifying immersive audio creation, speaker layout control, and FLUX:: processing in a single, streamlined workflow.

• Native DAW integration
  Run SPAT Revolution on the same machine as your preferred DAW (Pro Tools, Ableton, Nuendo, Logic Pro, Reaper), enabling full control within one environment.
• Fully renewed plugin layout
  Updated visual identity and touch‑and‑feel consistent with SPAT Revolution.
• All parameters in the channel strip
  Direct access to all SPAT Revolution parameters from the DAW channel strip, eliminating fragmented workflows.
• Speaker layout control from the DAW
  Configure and manage speaker layouts without leaving your DAW.
• Integrated FLUX:: audio processing
  FLUX:: processing embedded directly in the SPAT audio chain—the first integration phase of 25 years of FLUX developments.
• Built‑in processing tools
  • Sources: EQ, Compressor, Touch, Drive
  • Rooms: EQ
  • Outputs: EQ with direct import from MiRA
