TRAX TRANSFORMER 2023

The Next Generation Voice and Sonic Processing Tools

A suite of three ingenious processors using pioneering technology developed during the last decades by the sound analysis/synthesis team at IRCAM, with innovative signal transformation algorithms for altering sound characteristics such as pitch, spectral timbre and duration to manipulate properties of a voice such as gender, age and breath.

Ircam TRAX

Three ingenious voice and sonic processors, Transformer, Cross Synthesis and Source Filter, for altering pitch, spectral timbre and duration to manipulate properties of a voice such as gender, age and breath.

Buy now  Subscribe now

* We offer a 50% academic discount, based on the full MSRP, for students, teachers and schools on all our products. Click here to apply.

All Features



  • Transformer – Real-time Voice and Sonic Modelling Processor
  • Input/Output Gain (Transformer) -60/+18 dB
  • Dry/Wet mix control (Transformer) – For mixing in unprocessed signal with the processed signal.
Read more ...
  • Mode (Transformer) – For selecting the type of algorithm used, Voice (vocals), Instrument (other instruments), Music (mixed music)
  • Source (Transformer) – For setting the frequency ranges of the material to be processed, with a learn function for automatic analysis of the material.
    Target (Transformer) – Providing a range of options for the transformation of the source material.
    Remix (Transformer) – A mini-mixing console where the various components of the processed audio can be mixed before sending the signal to the output.
  • Options (Transformer) – Controlling a number of parameters affecting the analysis-re-synthesis engine.
  •  Modulations (Transformer) – For some fun and more creative and expressive processing, two modulators are provided; one for modulating the Pitch (Transpose), and one for the Formant.
  •  Spectral Envelope (Transformer)- For complex remapping of the spectrum envelope, according to a freely definable curve.
  •  Filters (Transformer) – A two-band high/low pass filter section that can be applied on the incoming or the outgoing material.

Cross Synthesis – Spectral Envelope Morphing Processor

Options (Cross Synthesis)

  • Oversampling adjusts the oversampling factor
  • Overlap controls how often the analysis is updated for a given window size





Read more ...
      • Window Size determines the time-frame base used to extract time localized data in time from the incoming material
      • Transient toggles transient processing on and off.
      •  Amplitude (Cross Synthesis) – For controlling how the output amplitude is affected by the left and right channels.
      • Frequency (Cross Synthesis) – Controls the frequency content of the output with respect to the inputs.

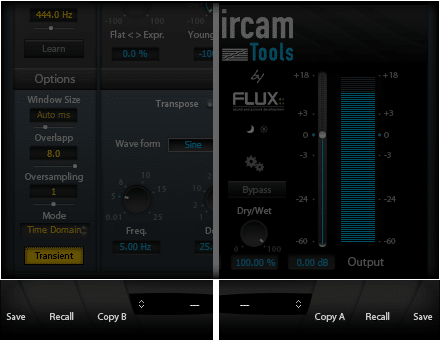

Preset and Parameter Handling



  • Preset/Parameter slots
  • To enhance the workflow the two Preset/Parameter slots, A and B, can be loaded with two full set of parameters at the same time. Apart from saving each preset, a “Global Preset” containing both the A and B settings, and the position of the “Morphing Slider”, can be saved.
Read more ...
    • Parameter Morphing Slider with Automation
    • The Morphing Slider provides morphing between the parameter settings of slot A/B allowing for really creative and useful real-time tweaking. Enabling the Automation control button exposes the Morphing Slider to the host automation.

Source Filter – Enhanced Sound Filtering



Options (Source Filter)

  • Oversampling adjusts the oversampling factor
  • Overlap controls how often the analysis is updated for a given window size



Read more ...
  • Window Size determines the time-frame base used to extract time localized data in time from the incoming material.

Temporal Envelope (Source Filter) – Controls how much of the dynamics from channel 2 versus channel 1  will be imprinted onto the output signal.

Spectral Envelope (Source Filter) – Source and Filter track extraction and analysis.

True bypass control routing the incoming signal direct to the output for a smooth transition between clean and processed signal

Open Sound Control Support

Compatibility





Apple SIlicon

Tutorials

Transformer – Real-time Voice and Sonic Modelling Processor

TRAX Transformer is based on an augmented phase vocoder technology and a cutting edge transformation algorithm, allowing for manipulating characteristic properties of a voice such as gender, age and breath, and on any other sound; expression, formant and pitch.

These voice transformation algorithms have already been used, with great success, in international and French cinema productions. (Farinelli, Vatel, Tirésia, Les amours d’Astrée and Céladon)

TRAX TRANSFORMER 2023

Source (Trax Transformer)

With the Spectral Envelope complex remapping of the actual spectrum envelope, according to a freely definable curve, can be performed.

Source (Trax Transformer)

With the Spectral Envelope complex remapping of the actual spectrum envelope, according to a freely definable curve, can be performed.

Target (Trax Transformer)

Target, provide a range of options for the transformation of the source material. In voice mode, a range of vocal types/ranges are available, and on top of that, parameters such as gender, age and breath can be used as well. For all types of material, pitch, expression and formant are provided as well.

Spectral Envelope (Transformer)

Up to eight channels of simultaneous processing for multichannel surround configuration is provided. The processing can be disengaged on any of the channels leaving the material unprocessed, bypassing the original sound.

When operating on a multi-channel bus all, up to eight in total, channels are processed by default, though the processing can be disengaged for any number of channels leaving the material unprocessed and bypassing the original sound.

By doing this in combination with serial instances the material on any number of channels can be processed with individual settings.

Spectral Envelope (Transformer)

Up to eight channels of simultaneous processing for multichannel surround configuration is provided. The processing can be disengaged on any of the channels leaving the material unprocessed, bypassing the original sound.

When operating on a multi-channel bus all, up to eight in total, channels are processed by default, though the processing can be disengaged for any number of channels leaving the material unprocessed and bypassing the original sound.

By doing this in combination with serial instances the material on any number of channels can be processed with individual settings.

Cross Synthesis – Spectral Envelope Morphing Processor

TRAX Cross Synthesis utilizes a phase vocoder (the amplitude and the frequency/phase spectra), to morph the spectral characteristics of two sounds. The amplitude and frequency/phase spectra can be blended continuously and since the features that are used here are strongly nonlinear, the sound morphing is nonlinear as well, offering a way to create a wide range of new exciting and unusual sound effects.

TRAX CROSS SYNTHESIS 2023
TRAX SOURCE FILTER 2023

Source Filter – Enhanced Sound Filtering

TRAX Source Filter is based on a signal model decomposing the signal into a time envelope describing the energy/loudness contour of the sound, and a spectral envelope describing the spectral colour of the sound timbre. The energy contour and the spectral colour of the source sound, can be continuously blended with the spectral colour and energy contour of an arbitrary filtrating sound, allowing transformation that extend well beyond the more common source filter morphing effect.

Source Filter – Enhanced Sound Filtering

TRAX Source Filter is based on a signal model decomposing the signal into a time envelope describing the energy/loudness contour of the sound, and a spectral envelope describing the spectral colour of the sound timbre. The energy contour and the spectral colour of the source sound, can be continuously blended with the spectral colour and energy contour of an arbitrary filtrating sound, allowing transformation that extend well beyond the more common source filter morphing effect.

TRAX SOURCE FILTER 2023
