Analyze This!

FLUX:: Analyzer is a stand-alone application taking its audio samples from ASIO and Core Audio hardware I/O or via the SampleGrabber plugin for simple integration with DAWs and Digital Mixing Consoles – The Next Generation Real-Time Analyzer System providing a comprehensive range of analyzer options for any imaginable audio analysis and measurement, including loudness metering.

The Next Generation Real-Time Analyzer System

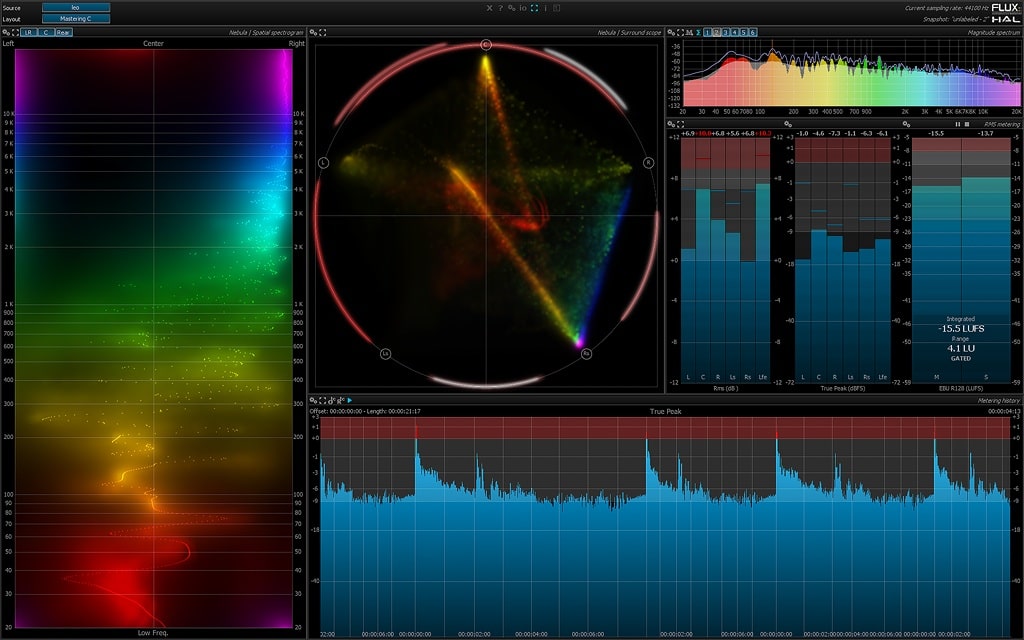

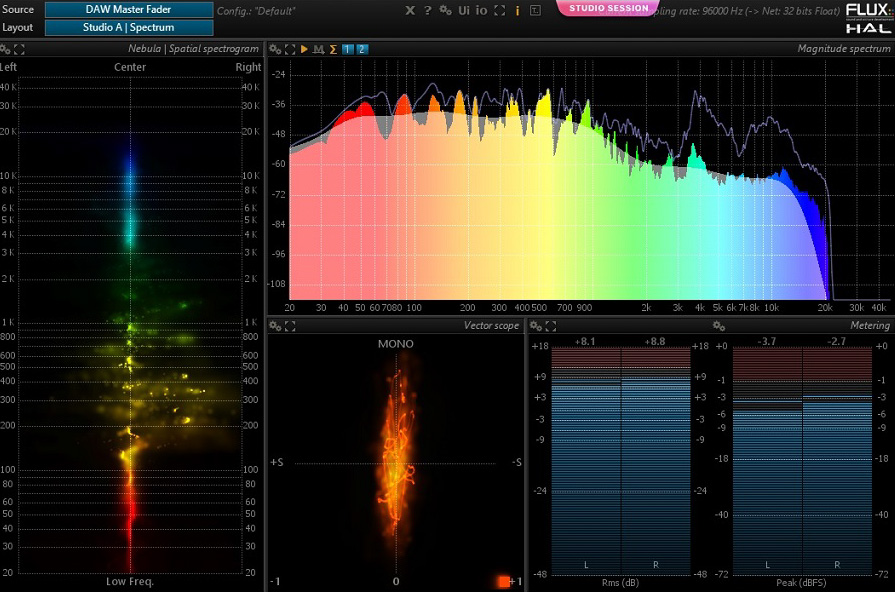

FLUX:: Analyzer Session

FLUX:: Session Analyzer
  • Real-time metering with Peak / Basic RMS and now including EBU R128 / PLOUD
  • Real-time spectrum analyser
  • FLUX Nebula Stereo
  • Phase meter, vectorscope and spectrogram display
  • Unique Spectrum over space scope
  • 4 Studio layout views
  • Mono / Stereo up to 2 ch.
  • Sample Rates (kHz) – 44.1, 48, 88.2, 96, 176.4, 192, 384 DXD
  • Add-on options NOT supported

FLUX:: Session Analyzer is also available in an advantageous offer as part of the Studio Session Pack plugin bundle.



FLUX:: Analyzer Essential

FLUX:: Analyzer Essential
  • Real-time metering with Peak / Basic RMS and now including EBU R128 / PLOUD
  • Fully customizable metering history
    • True Peak incident list with customizable threshold
  • Offline metering stats
    • Files Batch for offline analysis
    • Peak, True Peak and EBU R128
    • Up to 16 channels file
    • Channel type detection from filename
    • Export statistics to the text file
  • 4 Studio, 8 Mastering and Offline metering Layouts
  • Real-time spectrum analyser
  • FLUX Nebula Stereo
  • Phase meter, vectorscope, spectrogram display
  • Unique Spectrum over space scope
  • Support ready for up to 16 channels *
  • Sample Rates (kHz) – 44.1, 48, 88.2, 96, 176.4, 192, 384 DXD
  • Support for Live and Multichannel add-on options

* Multichannel add-on option required

FLUX:: Analyzer Essential – Add-on Options

Multichannel Option

The Multichannel and Surround add-on module provides a vast range of measurement tools for comprehensive analysis of multichannel audio environments. This option introduces FLUX:: Nebula | Surround,a unique and innovative real-time visualization of the audio content in the surround space-frequency domain. A presentation of frequency and scope over space in a fashion never seen before.

Key Features

  • Unique and Innovative Flux:: Nebula Surround
  • Analysis of up to 8 channels simultaneously
  • Speaker arrangements (Up to 7.1) with various channel order / layouts
  • Adds multichannel loudness / metering
  • Adds Multi-Microphone support for Live add-on option

Live Option

The Live add-on module provides the elements needed to assist the live sound engineer in speaker array calibration tasks with; delay finder, level, meter, transfer function magnitude, phase and coherence spectra, impulse response, as well as snapshot facilities.

Key Features

  • Live I/O Setup with Multi-Microphone support *
  • Sample accurate Delay Finder
  • Additonal 10 Live Layout view
  • LEq and SPL module
  • Impulse Response and Transfer Function
  • SnapShots system


* Multichannel add-on option required

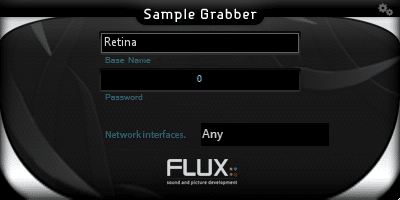

Audio I/O and the SampleGrabber Plug-in

The core of the FLUX:: Real Time Analyzer System, is a stand-alone software application with full support for standard hardware I/O using ASIO and Core Audio. In addition to this, a plug-in called SampleGrabber, available in all standard plug-in formats, is provided.

The SampleGrabber plug-in can be inserted into the insert chain on any DAW or Digital Mixing Console supporting standard plug-ins, where it grabs the source/response audio signal and send it through the network using the ZeroConf/Apple Bonjour protocol to the Analyzer stand-alone app that analyzes the audio in real time.

What Our Users Think

Watch And Learn More

Getting started with the FLUX:: Analyzer

Loudness Mode with the FLUX:: Analyzer

Sending audio from an Avid Venue console to the FLUX:: Analyzer

Session Analyzer – Now with Loudness and Hardware I/O support

FLUX:: Analyzer Session

FLUX:: Analyzer Session – The basics of analysis, with a comprehensive range of analyzer tools to give you full visual control of your mix, including loudness, LUFS metering, add-on options NOT supported.

Buy now

FLUX:: Session Analyzer

FLUX:: Analyzer Essential

FLUX:: Analyzer Essential – The essentials for any imaginable audio analysis and measurement, now including EBU R128 / PLOUD with fully customizable metering history and Offline metering stats, and with optional Live and Multichannel add-on modules for specific utilization.

Buy now  Subscribe now

    FLUX:: Analyzer Multichannel Add-on

    Multichannel Add-on Option

    FLUX:: Analyzer Multichannel & Surround add-on option – Provides a vast range of measurement tools for comprehensive analysis of multichannel audio environments.

    FLUX:: Analyzer Live Add-on

    Live Sound Add-on Option

    FLUX:: Analyzer Live Sound add-on option – Provides the elements needed to assist the live sound engineer in speaker array calibration.

    We offer a 50% academic discount, based on the full MSRP, for students, teachers and schools on all our products. Click here to apply.

    Main Specifications – Versions Comparison

    FLUX:: Analyzer Session

    Now with Loudness and Hardware I/O support

    Stand-Alone Application – MacOS, Windows
    Inputs/Outputs
    – Mono, Stereo, up to 2 channels
    I/O Configuration – SampleGrabber Plug-in (AAX, AU, VST)
    Hardware I/O – ASIO, Core Audio
    Sample Rates (kHz) – 44.1, 48, 88.2, 96, 176.4, 192, 384 DXD
    Add-On Options – NOT supported

    FLUX:: Analyzer Essential

    Now including Metering and Loudness

    Stand-Alone Application – MacOS, Windows
    Inputs/Outputs
    – Mono, Stereo, Support for up to 16 channels *
    I/O Configuration – SampleGrabber Plug-in (AAX, AU, VST)
    Hardware I/O – ASIO, Core Audio
    Sample Rates (kHz) – 44.1, 48, 88.2, 96, 176.4, 192, 384 DXD
    Add-on Options – MultiChannel, Live Sound

    * Multichannel add-on option required

    Online User Guide

    Online Documentation

    Specifications

    Features
    Input / Output
    SessionEssential
    Mono / Stereo
    Multichannel up to 16 channels *
    Hardware I/O – ASIO / Core Audio
    SampleGrabber (DAW/Console integration)
    Sample Rates (kHz) – 44.1, 48, 88.2, 96, 176.4, 192, 384 DXD

    * Multichannel add-on option required
    Metering
    SessionEssential
    Basic metering with Peak / Basic RMS meter
    Phase meter
    Real-time spectrum analyzer
    Spectrogram Display
    Vector Scope
    Flux:: Nebula Stereo
    Unique spectrum over space scope
    Oscilloscope
    Loudness Metering
    SessionEssential
    Fully customizable and configurable meters
    Real-time metering statistics
    In the Spectrum, Spectrogram and Scope layouts only
    LUFS – EBU R128 / PLOUD
    Loudness Metering Modes including various standards
    ITU-R BS.1770 True Peak Default and user presets
    Dolby Dialogue Intelligence TM
    Real-time metering history
    Offline metering statistics
    Add-on Option Support
    SessionEssential
    Multichannel
    Live



    Add-on Options - Features
    Multichannel Add-on
    • Multichannel I/O Configurations
      • Support ready for up to 16 channels
      • Speaker arrangements configuration up to 8 channels
        • 3.1, QUAD, LCRS, HOA 1st order
        • QUAD.1, 5.0
        • 5.1, 6.0 and Circular 2D/6
        • 5.0.2 Dolby Atmos,Circular 2D/6.1
        • 5.1.2 and 6.0.2 Dolby Atmos, 7.1, 8.0 and Circular 2D/8
    • Multichannel Loudness / Metering
    • Flux:: Nebula surround
      • 2D / Top View
      • Nebula | Spatial Spectrogram
      • Nebula | Surround Scope
        • Music Mode (LR: -30°/-30°, Rear : -110°/-110°)
        • Equidistan speaker configuration
        • Square
        • Theatre square with addition of rear speaker, for theatre simulation
      • Auto-scaling and ballistics
      • Choice of linear and logarithmic blending
      • Inter-channel phase correlation
      • Color modes
        • Power grading: color varies according to signal power
        • Dynamic grading : color varies according to signal dynamic
        • Power/dynamic grading : combines both previous mode
        • Frequency grading : color varies according to frequency
      • Fading / persistence, Blurring, Scaling, Particle count display control
    Live Add-on
    • Live I/O Setup
      • Audio Source from hardware / sample grabber plugin
        • Compatible with AU, AAX, AAX VENUE and VST
        • Mono, Stereo or Stereo + Key In TBC
      • Microphone and Reference source definition
      • Multi-Channels reference and microphone support *
        • Up to 8 (ref) or 16 (mic) with multichannel option
        • Individual channel selection, Summation mode
      • Delay Compensation Toogle
      • Sample accurate Delay Finder
        • Long delay detection option
        • Time  and Distance translation
      • Multi-Microphone support (with multichannel add-on option
      • Signal Generator
        • Pink noise, White noise, Sine, Linear sweep, Log. sweep
    • SPL module  |  LEq
      • Metering setup fully customizable
      • Average Level and Sound Exposure
      • A, B, C and D weighting
      • SPL Calibration tools
      • Slow, Fast and 10 Sec.
      • Color, Scaling, Integration time, Reference level, Hold
    • SnapShots system
      • Create average snapshots from preselected ones
      • Create snapshots from log sweep (int. Generator)
      • External project snapshot import
      • Impulse response import
    • Additional 10 Live Layout views
    • Impulse Response
      • Real time short or up to 10 sec.  IR
      • Time averaging with confidence level
      • Auto Rang and  Zoom
      • Peak tracking with send to delay compensation option
    • Transfer Function
      • Analysis resolution up to 64K
      • Overlapping control
      • Magnitude options
        • Averaging with Vector, RMS or RMS+Vect. Mode
        • Auto Range
        • Invert (“Iv” button) function
      • Coherence
      • Phase
    • Spectrum
      • Summed
      • Channel independent
    Processing
    SessionEssential
    32/64-bits internal floating point processing.
    Sampling rate up to 384 kHz DXD
    Network support with the SampleGrabber plug-in (Password-protected audio stream encryption available)
    Extremely efficient OpenGL based graphics rendering engine, capable of up to 120 fps
    Independent display and time-code frame rates
    Auto-pause controlled by user-defined threshold
    System Requirements

    The FLUX:: Analyzer is built around Flux::’s new 2D/3D efficient graphic engine, which employs full GPU-acceleration utilizing an OpenGL 2.0 compliant graphics card. USB displays are not supported.

    In order to experience the outstanding graphical response in FLUX:: Analyzer and to fully take advantage of the software’s analysis capabilities, using a modern nVidia or ATI Radeon graphics card is recommended.
    Older, and other less efficient graphics cards do not have the required performance and specifications, and will offload too much work to the CPU.

    The processor is an important factor as well, and we recommend using at least and Intel Core 2 Duo, Core i5 or newer architecture processor. AMD processors are also supported, but might exhibit lower performance, as they do not offer the same capabilities and optimizations as Intel CPUs.

    System Recommendations

    GPU: AMD/ATI Radeon or nVidia video-card. Intel integrated graphics are tested and works, but with limited capabilites, thus should be avoided.

    Minimum requirements

    • CPU: Intel Core 2 Duo @ 1.6 GHz
    • GPU: OpenGL 2.0 or superior compatible, with pixel-shader support

    Recommended configuration

    • CPU: Intel Core i5 @ 1.7 – 2.2 GHz or better
    • GPU: AMD/ATI Radeon or nVidia. Intel integrated graphic-cards are tested and works, but with limited capabilites.

    Common requirements

    • A FLUX:: account, and an iLok account (no iLok USB key required).

    Notes
    Please make sure that the latest version of vendor-provided optimized drivers are installed for your graphics card. Generic drivers may contain bugs and are in general less up-to-date with optimizations presented in drivers specific to your particular graphics card model.

    OS Compatibility

    FLUX:: Analyzer Application

     SessionEssential
    Windows 10 – 64 bit
    MacOS: 10.13 High Sierra to 12.1 Monterey

    SampleGrabber plug-in



    Installed Application Files

    Analyzer Essential

    Windows 64 bit

    • FluxAnalyzer-x64.exe
    • FluxAnalyzer-f64-x64.exe

    Mac OS X 64 bit

    • FluxAnalyzer
    • FluxAnalyzer-f64

    The f64 FLUX:: Analyzer application works internally in 64bit float, while the non f64 version works internally in 32bit float, it’s a minor difference in precision, with the 64bit version consuming more processing resources.

    The 32bit version is already very precise, and more than enough for all common everyday applications. The 64bit version is provided for very specific applications; that sometimes may require extreme detail in the analysis.


    Session Analyzer

    Windows 64 bit

    • Studio Session Analyzer-x64.exe

    Mac OS X 64 bit

    • Studio Session Analyzer
    Hardware Requirements
    SessionEssential
    Specifications Listed Below

    Graphics Card

    A graphic card fully supporting OpenGL 2.0 is required.

    • Mac OS X: OpenGL 2.0 required – Mac Pro 1.1 & Mac Pro 2.1 are not supported.
    • Windows: If your computer has an ATi or NVidia graphics card, please assure the latest graphic drivers from the ATi or NVidia website are installed.

    Audio Interface

    • Mac OS X: any Core Audio compatible interface or virtual sound card
    • Windows: any ASIO compatible interface or virtual sound card
      Software Licence Requirements
      SessionEssential
      iLok account required
      Machine authorization is supported
      iLok USB Smart Key support (From 2nd gen)
      iLok Cloud support
      Simultaneous authorizations (2)
