SPAT Revolution HRTF

Using binaural audio means dealing with HRTFs. In the HRTF section in the Spat Revolution preferences menu, you can access and manage HRTFs. The HRTF used by default is Kemar, which can of course be changed and another HRTF can be set up as default instead.

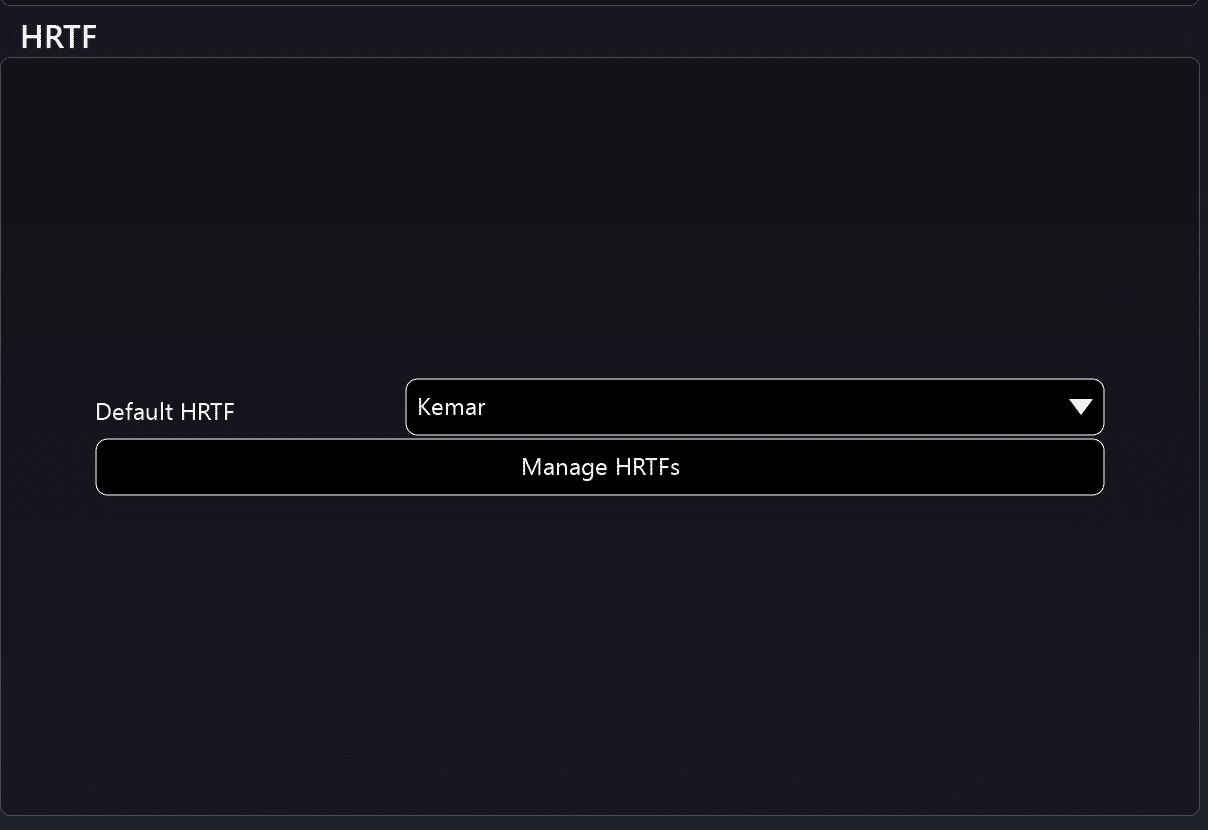

HRTF Preferences

In the Manage HRTF section you have access to a database listing locally available and downloadable HRTFs. When an HRTF is downloaded, or locally available on your computer, you can set up, with
Include or Exclude, which HRTFs are displayed as available in the Spat Revolution Binaural Room or Binaural Monitoring modules.

HRTF Manage

As an example, the KU100 Neumann HRTF, commonly used in 360/VR pipelines and in VR SDKs (Google, YouTube, etc.), is available in the database and can be downloaded and included in your workflow.

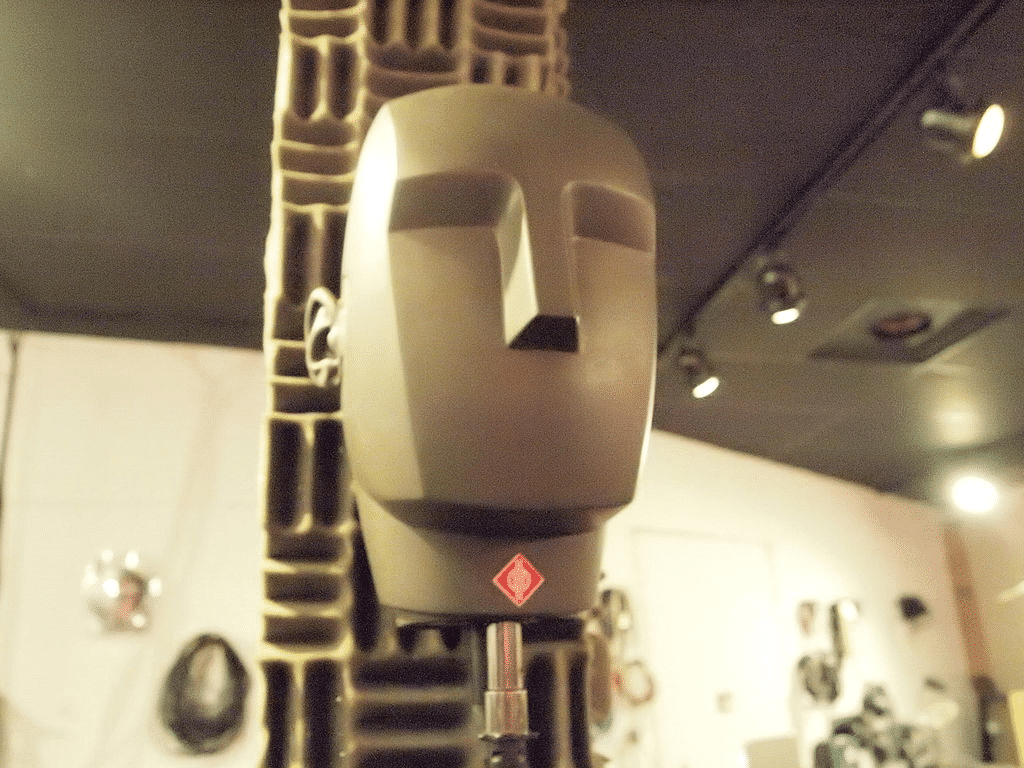

Neaumann KU100 Dummy Head

Choosing the KU100 Neumann as the default HRTF will assure it is selected automatically every time you use a Binaural Room or Binaural Monitor module.

HRTF Manager

If you are fortunate enough to have your own HRTF, you can simply import your file to Spat Revolution in a few simple steps. First, verify that your HRTF is using a SOFA file format and that it’s Diffuse Field Equalized – this means that the direction-independent component in the HRTF is removed. This direction-dependent component is referred to as a DTF (Direct Transfer Function) version. Supported are SimpleFreeFieldHRIR or SimpleFreeFieldSOS IIR.  HRTF Modeled as IIR filters are preferred.

Ideally, your file name ends with SampleRate.SOFA. With this file name structure, Spat Revolution will import all your HRTFs as one single entity, with various sample rates available. (Without this file name structure, each sample rate will be imported as a separate HRTF, which is not as convenient. File example “My HRTF name”_44100.sofa “My HRTF name”_48000.sofa :My HRTF name”_96000.sofa)

Importing your HRTF to Spat Revolution will require four simple steps:

1. Locate your files and open Spat Revolution.

2. Go to Preferences, HRTF section, Manage HRTFs.

HRTF Preferences

3. Press the import button and select your .SOFA files (You can select all sample rates).

HRTF Manage

4. Make sure to choose the DTF version of your HRTF.


HRTF Import Success

When your HRTFs are imported, you will see them as available files, which from now on will automatically be included in your Spat Revolution software preferences. Your last step is to simply choose your HRTF as the default in the HRTF section in the Spat Revolution preferences.
